Structural Systems

Engineered for load-bearing performance, SpecWall Structural Panels combine strength, efficiency, and optimized weight in a smart, built-on-site system. Its light-gauge steel frame provides structural integrity and anti-seismic performance, while the lightweight concrete core delivers strength, thermal insulation, and fire performance.

The all-in-one dry construction SpecWall Structural system eliminates the need for structural columns, shuttering, casting, walling and multiple wet trades on site. It reduces construction time by over 50% compared to conventional methods, lowers labor demands, and comes ready to receive finishing and roofing systems according to regional preferences.

Beyond speed and simplicity, it delivers economic value with high durability, ensuring a cost-effective, long-lasting shell & core system tailored to modern construction needs.

SpecWall delivers an all-in-one wall solution, with:

Embedded Services

Integrated Frames

Structural Integrity

Application

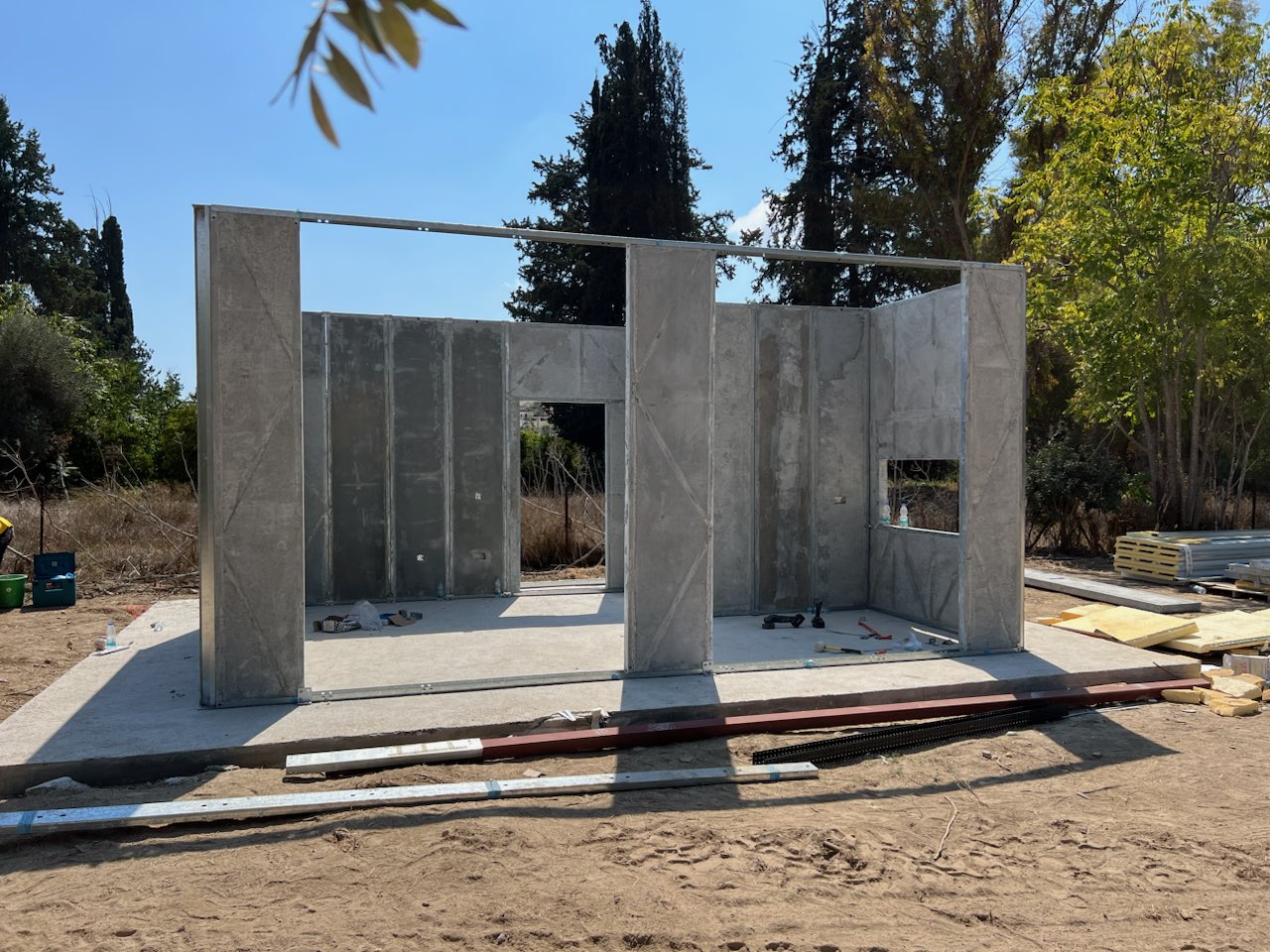

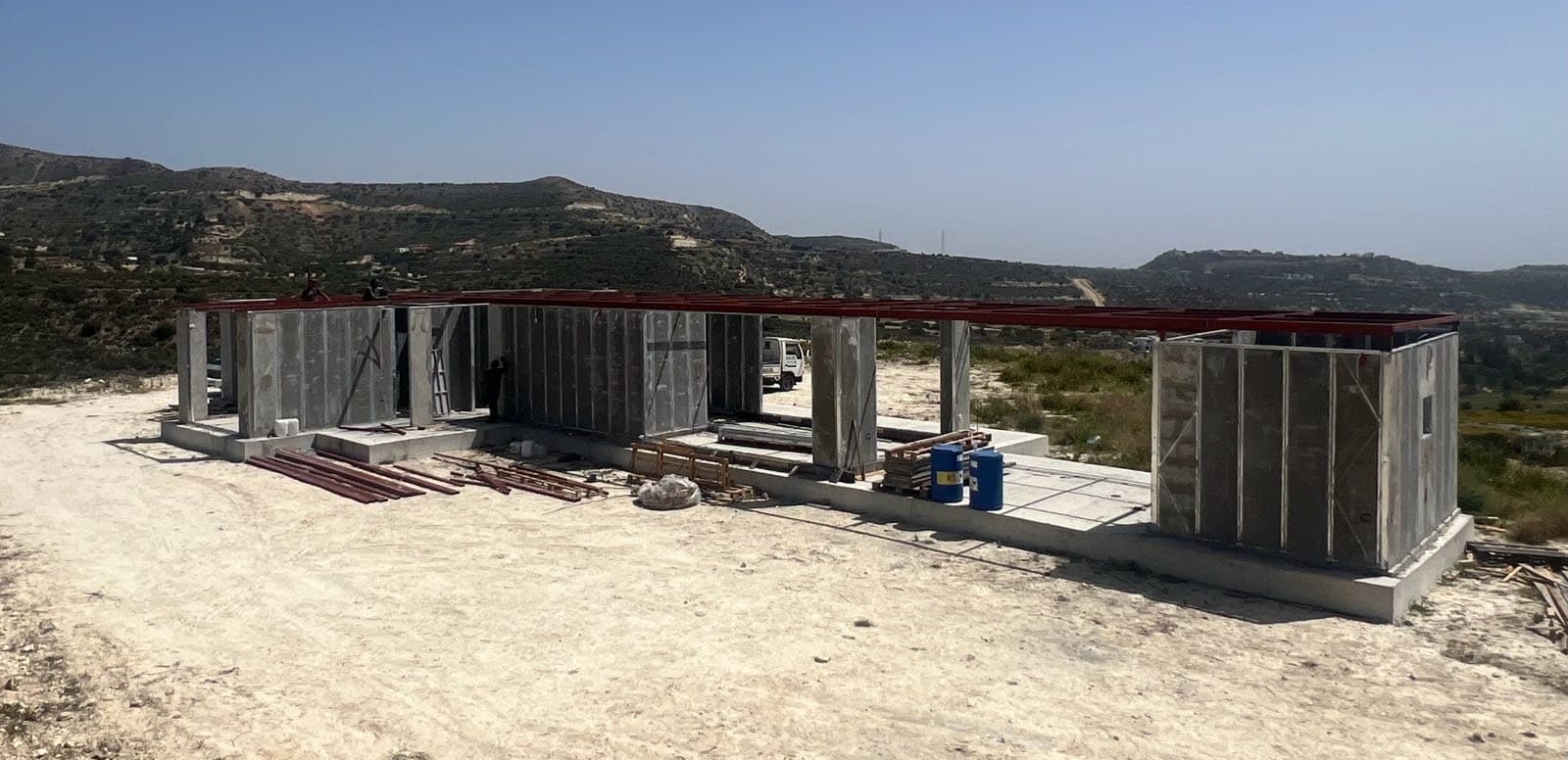

Shell & Core
Structural Walls

Alternative to

Blockwork
Drywall
Casted Walls
Precast Walls
Steel Structures
Concrete Structures
Wooden Structures

Advantages

Consistency in Finishing
Lightweight
Reduced Labor
Fast and Easy Installation
Solid & Robust
Thermally Insulated
Embedded Conduits
Reduced Footprint
Reduced Cost

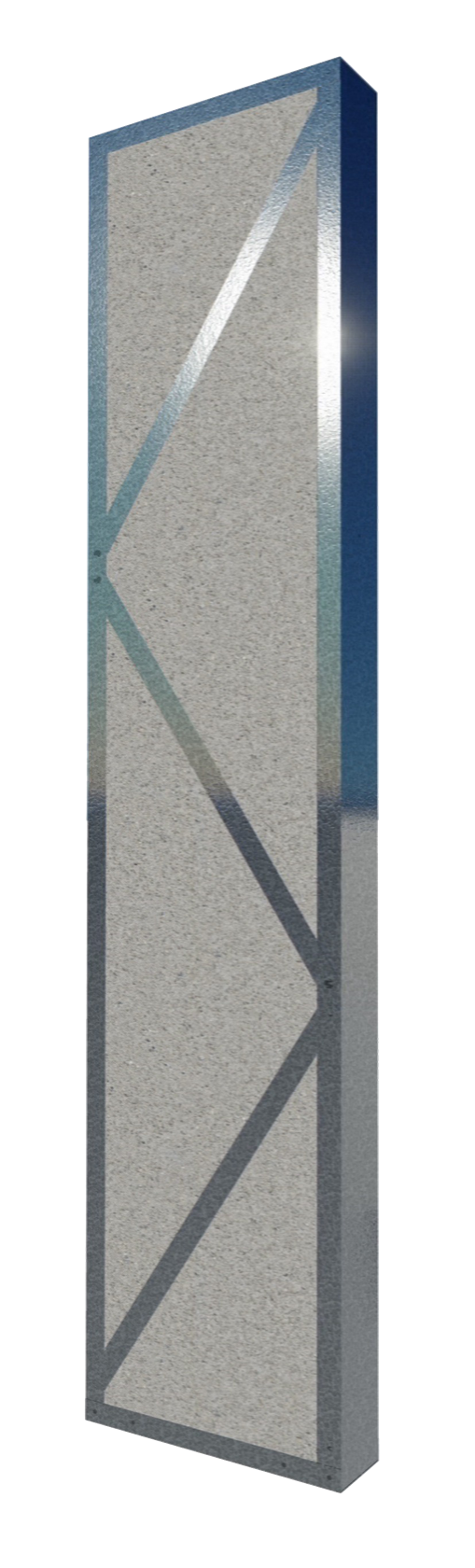

SpecWall Structural System

Standard Dimensions

Height: 3 m
Width: 0.61 m, 1.22 m, 1.83 m
Thickness: 100 mm, 150 mm, 200 mm

More Details

SpecWall Structural System

Characteristics

• Anti-Seismic Performance
• Fire Rating: B-S1,d0
• Thermally Insulated
• Water Resistance
• Smooth Concrete Finish
• Elimination of Plastering
• Lightweight: ~600 ± kg/m3
• Embedded Conduits and Sockets
• Crane Liftable
• Bolt & Nut System
• Application: Structural Walls & Shell & Core

Standard Dimensions

Height: 3 m
Width: 0.61 m, 1.22 m, 1.83 m
Thickness: 100 mm, 150 mm, 200 mm

More Details

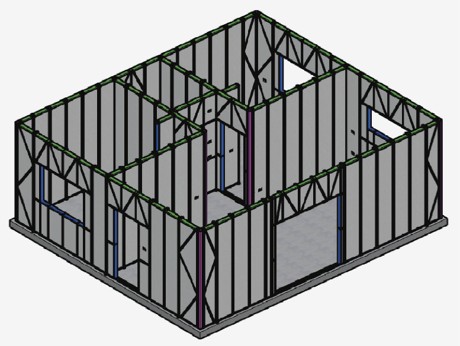

How SpecWall Structural Works

Modular Design & Adaptability

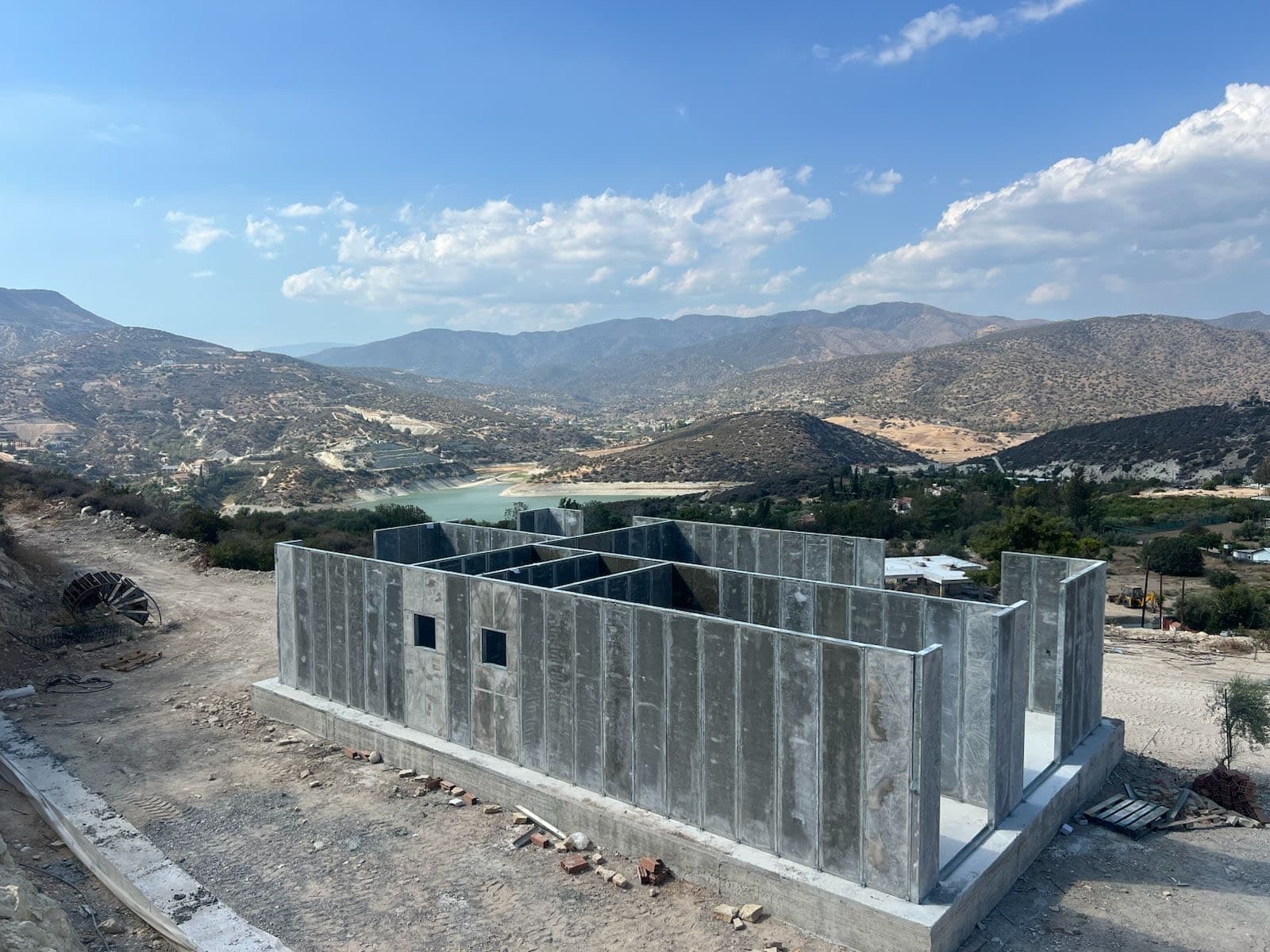

Whether used for structural walls or shell & core applications, SpecWall Structural delivers exceptional modularity with speed and precision. The factory-assembled cold-formed steel frame panels efficiently distribute loads and transfer them seamlessly into the foundation. This modular yet flexible system enables adaptable layout designs that integrate effortlessly with both structural and architectural concepts—optimizing space utilization and accelerating design workflows. Offered in standard dimensions with full customization options, SpecWall Structural simplifies the work of architects, engineers, and contractors alike.

Fast & Efficient Installation

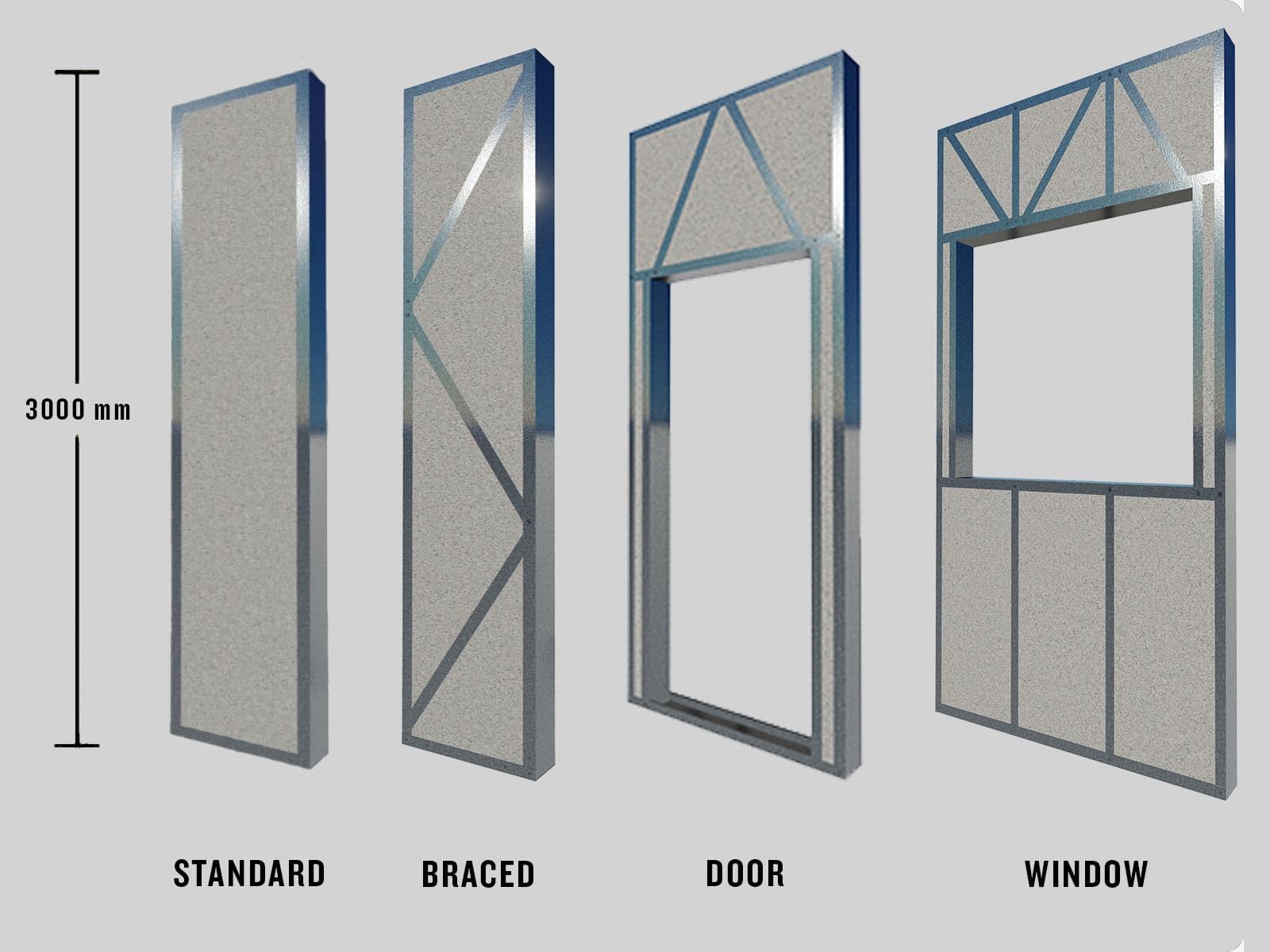

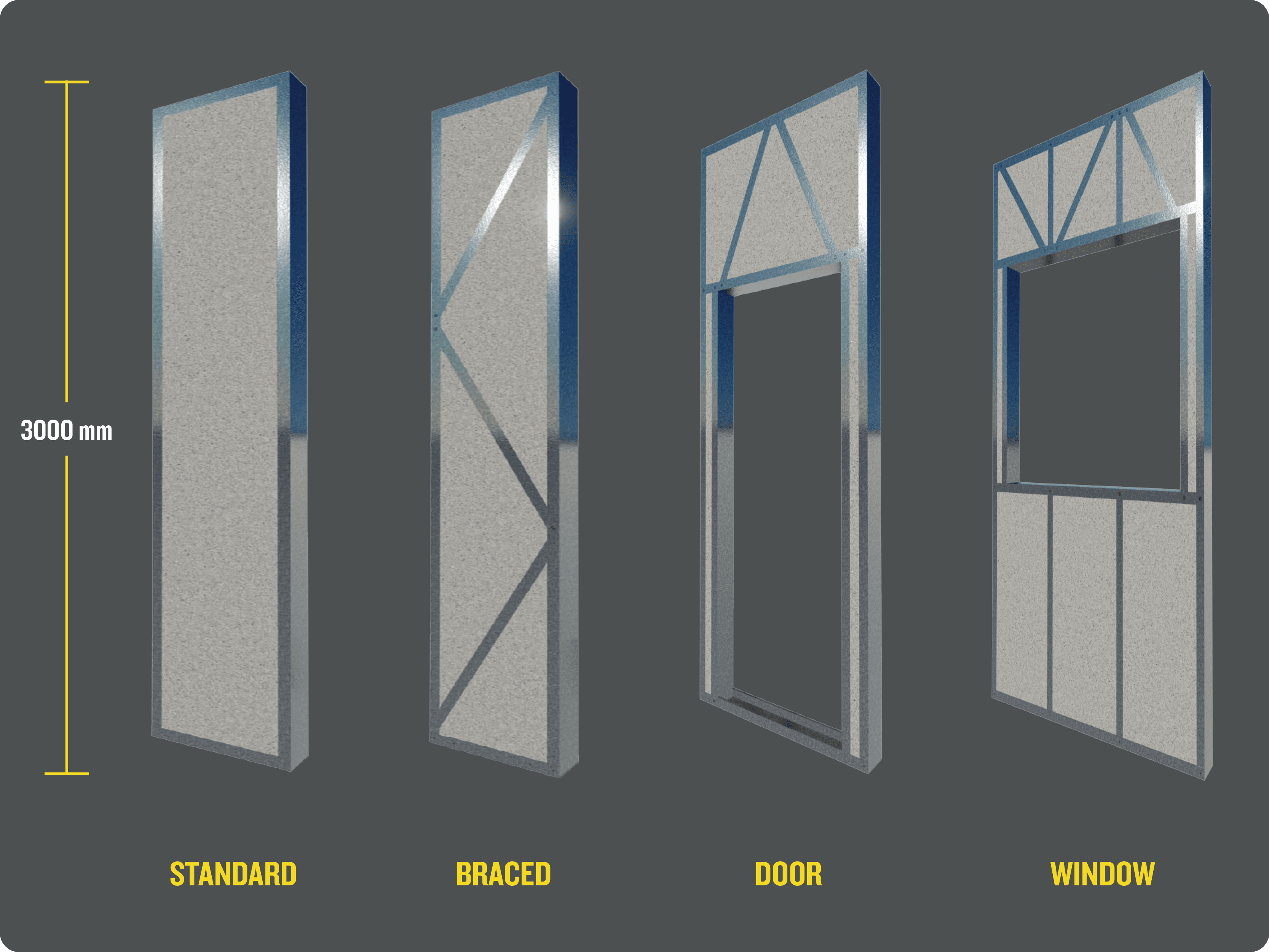

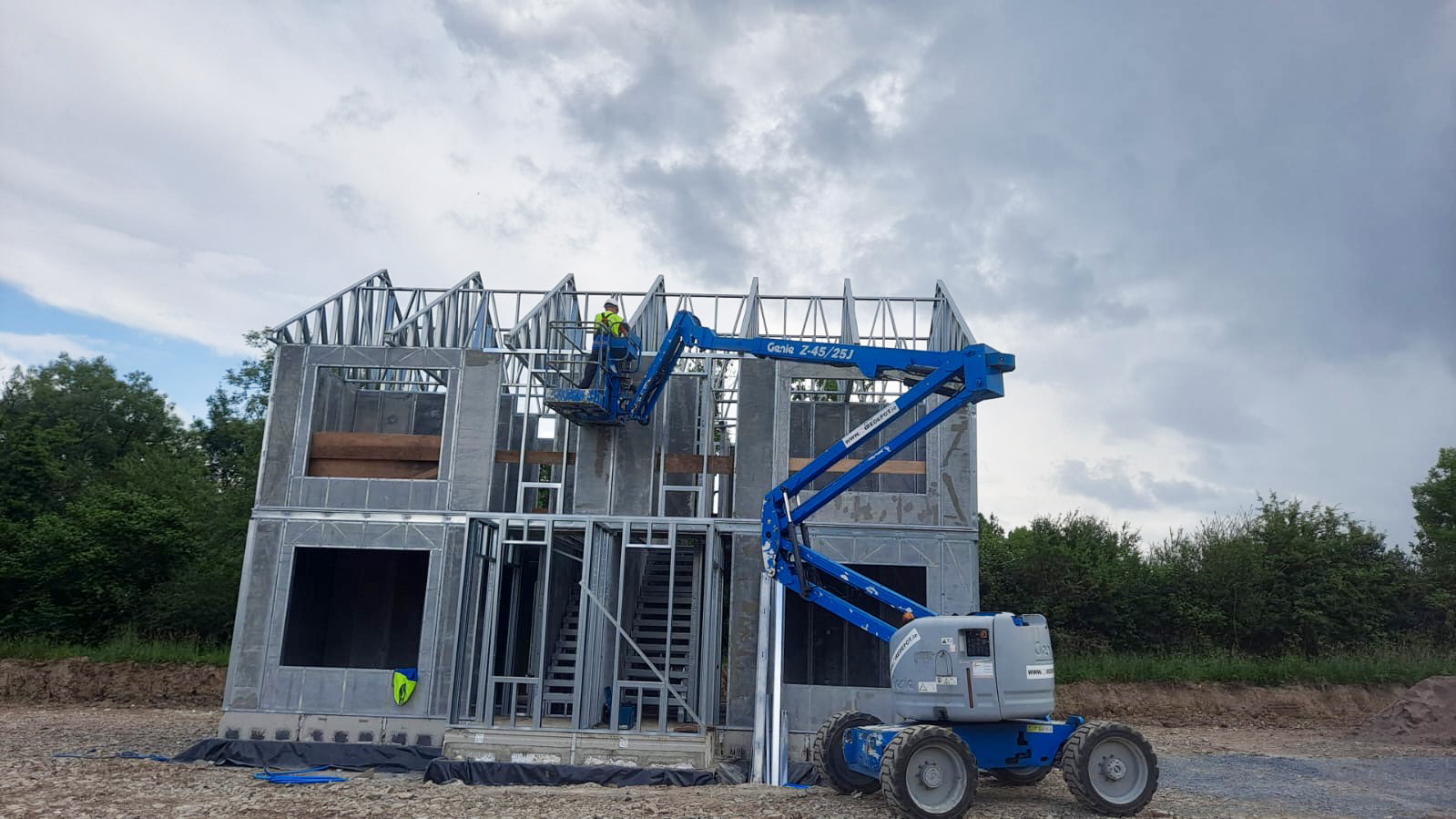

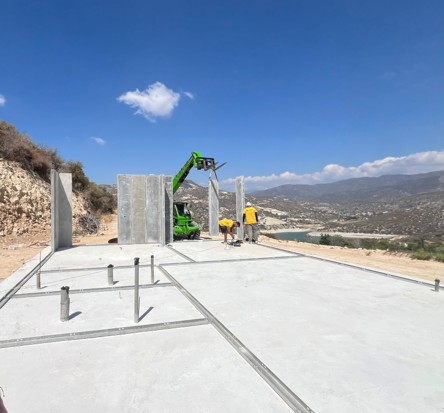

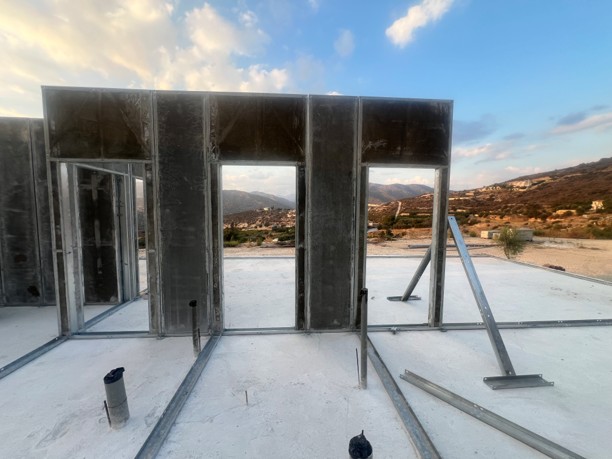

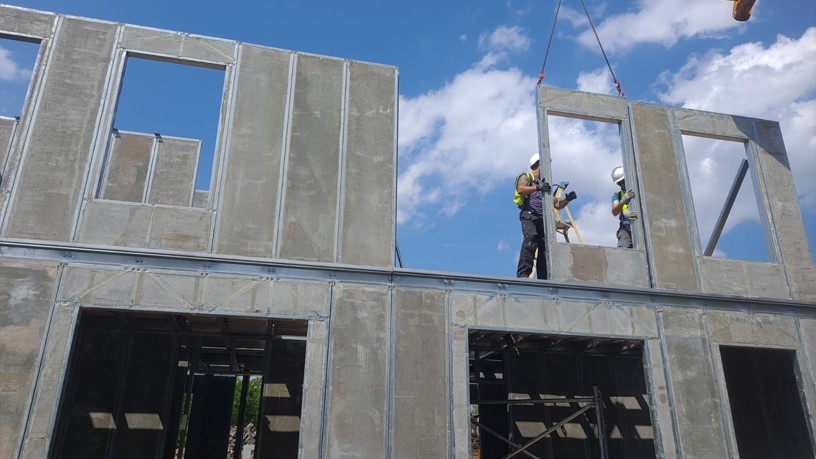

Installation is streamlined through a specially engineered lifting system and a nut-and-bolt connection method, eliminating the need for on-site welding. Panels can be easily positioned using a forklift or crane, requiring only minimal manpower for assembly. The system incorporates dedicated door and window panels as well as pre-embedded electrical conduits, enabling a fully panelized and coordinated construction process. The result is a clean, straightforward installation with no wet trades required, ensuring faster build times and superior on-site efficiency.

Flexible & Adaptable to Local Preferences

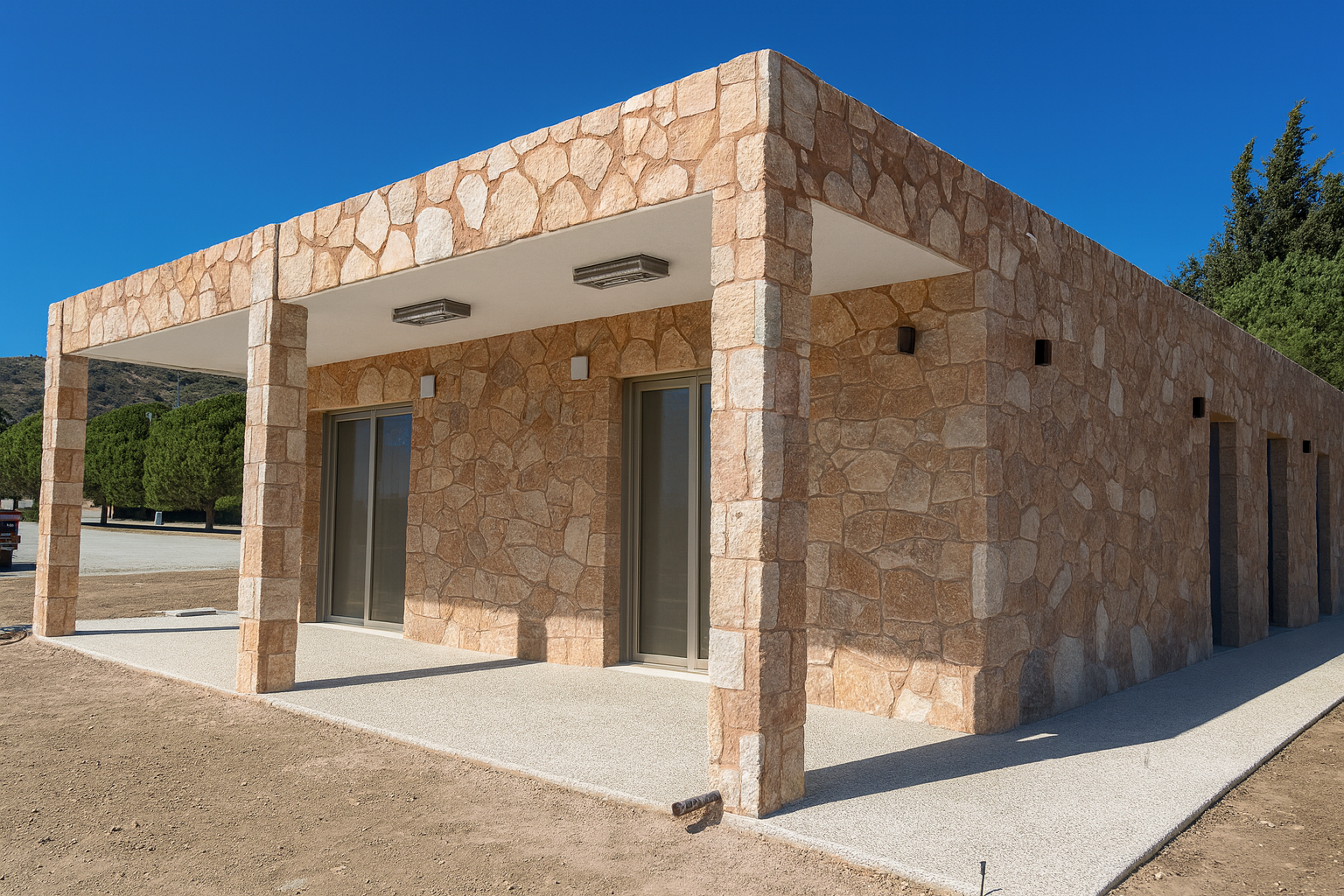

SpecWall Structural is designed to accommodate regional building styles and finishing preferences. Exterior and interior finishing can be achieved using a wide variety of materials — including brick façades, cement renders, timber or dry cladding, and EIFS systems. The panel’s optimized structural design allows coherent integration with different roofing systems, ensuring design consistency and performance. While inherently modular, the system provides remarkable flexibility in aesthetics, allowing each project to reflect the desired architectural character and personal taste.
